Model：Q11F-16P

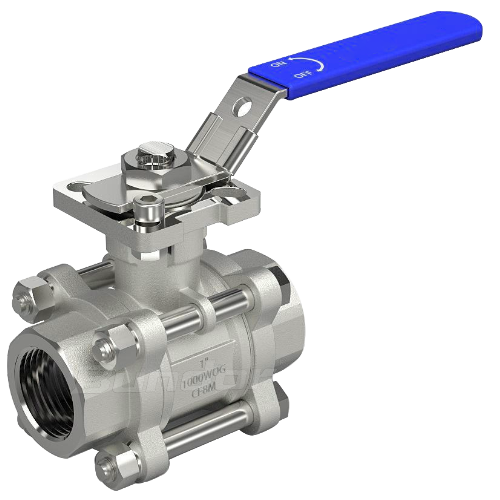

Name：Ball Valve with High Platform
Size： DN15-DN100
Pressure：PN16
Working temperature：-20℃～120℃
Suitable medium： Water, steam, oil, etc
Body ：Stainless Steel 304
Application： Municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, oil
Product advantages：
1. Chemical composition and mechanical properties of valve body material completely meet the national standards.
2. The cleanliness of valve chamber meets the requirements of JB/T7748.
3. Each valve must be tested in accordance with the national standard before leaving factory.
4. Explosion-proof design valve stem.
5. Handle with locking device.
Parameters
| Executive standard | ||||||
| Name | Design and manufacture | Face to face Length | Pressure Test | Thread Standard | ||
| Reference standard | GB/T 12237-2007 | GB/T 12221-2005 | GB/T 13927-2008 | ASME B1.20.1(NPT) DIN259/DIN2999 BS 21 ISO 288-1/ISO 7-1 |
||
| Material of Main Parts | ||||||
| Name | Body | Ball | Bonnet | Seat | Stem | Handle |
| Material | CF8 | CF8 | CF8 | PTFE | 304 | 201 |
| Dimensions | ||||||
| DN | NPS(Inch) | Φd | L | W | K*K | |
| 15 | 1/2'' | 15 | 68.5 | 140 | 9*9 | |
| 20 | 3/4'' | 20 | 79 | 140 | 9*9 | |
| 25 | 1'' | 25 | 89 | 170 | 11*11 | |
| 32 | 1 1/4'' | 32 | 100.5 | 170 | 11*11 | |
| 40 | 1 1/2'' | 38 | 111 | 200 | 14*14 | |
| 50 | 2'' | 50 | 129 | 200 | 14*14 | |
| 65 | 2 1/2'' | 65 | 169.5 | 300 | 17*17 | |
| 80 | 3'' | 80 | 191 | 300 | 17*17 | |
| 100 | 4'' | 100 | 242 | 300 | 17*17 | |
