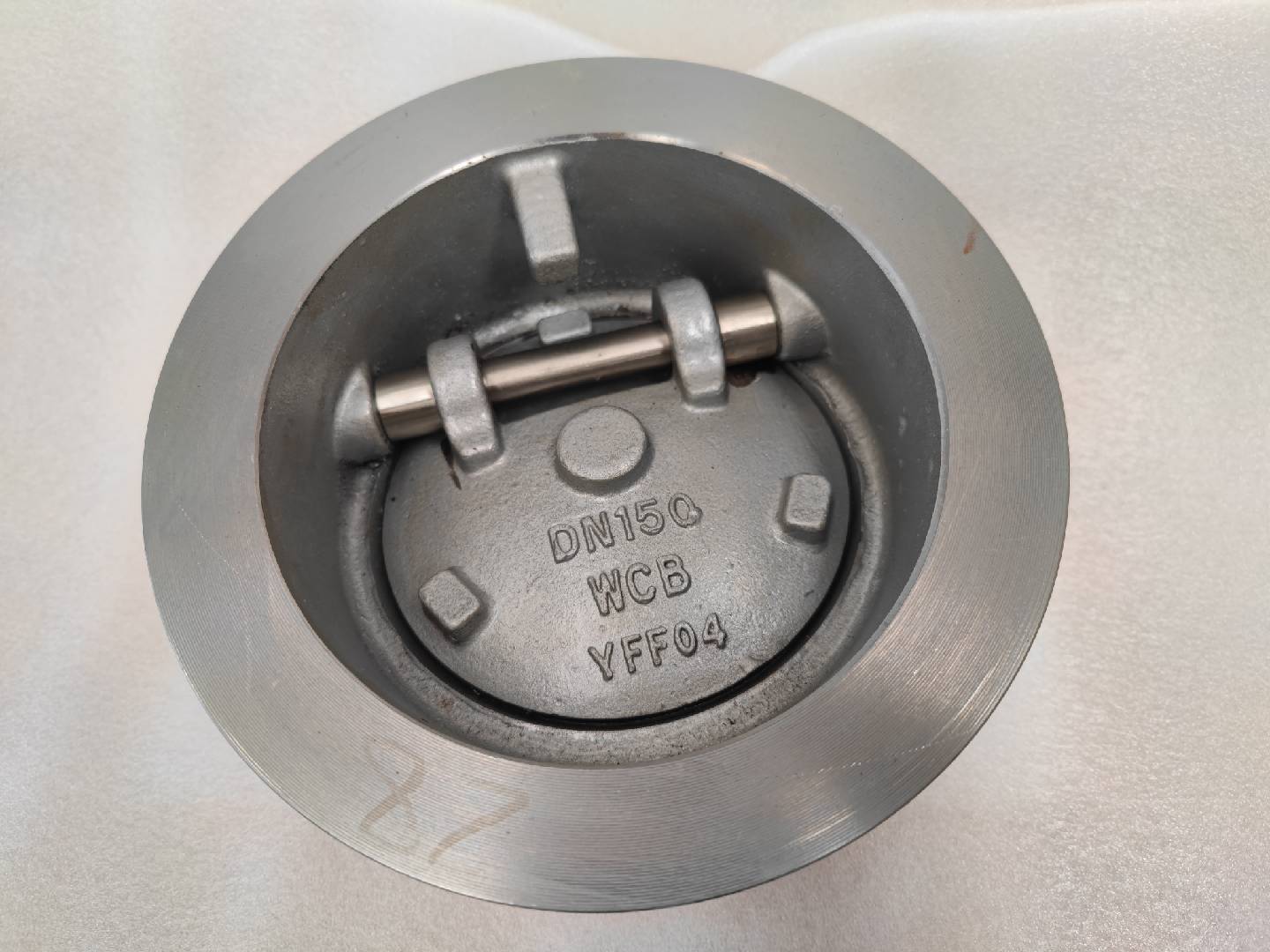

Wafer Check Valve

Size Range: DN80-200

Pressure: PN16

Body Materials: WCB

Disc Materials: SS304

Chat online Mail us

Introduction

H77 wafer check valve is a thin disc check valve suitable for installation in narrow space. The connection method adopts the standard wafer design and the valve disc is a swing structure. It has the advantages of simple structure, beautiful appearance, light weight and easy installation. It is mainly suitable for water supply systems, petroleum, chemical industry, metallurgy and other industrial sectors where there are installation space restrictions.

Adventage:
1. The valve body is precision cast, with fine appearance and up-to-standard materials
2. The internal parts are processed by CNC machine tools, with precise matching, interchangeable parts, and smooth and beautiful appearance
3. The sealing surface is plasma surfacing to increase the wear resistance of the valve
4. Rubber soft seals can be selected according to requirements
5. Each valve is tested for double-layer pressure of the shell and seal in accordance with national standards before leaving the factory

Parameters



Name 1-Body 2-Disc 3-Ring 4-Sealing 5-Shaft 6-Locating RingPacking
Material WCB SS304 SS304 13Cr SS304 SS304

DN NPS L D
80 3" 70 142
100 4" 80 162
150 6" 100 218
200 8" 140 273
