Electric Actuator

Size Range: Suitable Size for Butterfly Valve DN40-DN400

Body Materials: Aluminium Alloy


Top mounting structurer.This type actuator is used to control 0°-90° rotating valves and other similar products, such as butterfly valve, ball vale,plug valve etc.Widely used in petrochemical industry, water treatment, shipping, papermaking, power station, heating, light industry and other industries.It can be used 380V/220V/110V power supply as the driving power to control valves automatically.

Product Description:
Name : Electric Actuator
Model : 05-200
Output Torque : 50Nm-2000Nm
Suitable Size for Butterfly Valve :      DN40-DN400
Working temperature : -10℃~60℃
Protection Level : IP67
Shell Material : Aluminium Alloy
Application : Municipal construction, electric power, pharmaceutical, petrochemical and so on

Product Advantages:

A. Multiple Functions and Types
1. Intelligent type, proportional type, switching type, all kinds of signal output.
2. Several action times for choice, such as 5 seconds, 10 seconds, 15 seconds, 30 seconds, 60 seconds.
3. The intelligent control module is integrated into the body of the electric actuator without an external positioner.

B. Reliable Performance
1. The worm gear is forged by special copper alloy with high strength, good wear resistance and high transmission precision.
2.Key parts such as bearings and electrical components are imported famous brand products to improve their service life.
3.Through 1500V withstand voltage test, F grade insulated motor is safe and reliable.
4.IP67 high standard protection class.

C. Beautiful Appearance and easy to operate
1. Beautiful and smooth aluminium shell.
2. No refueling, no spot inspection, waterproof and anti-rust, installation at any angle.
3.The external connection is simple and has a variety of voltage models to choose.

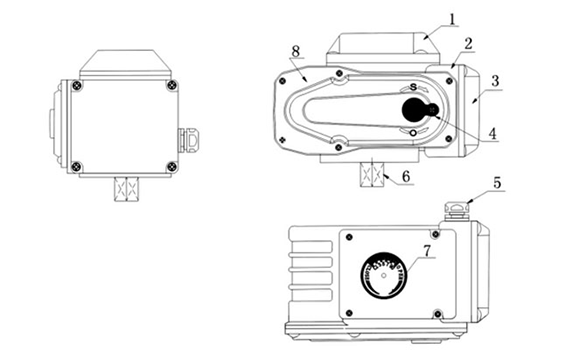

Main Parts
1 Cover 5 Waterproof cable joint
2 Box 6 Output shaft
3  Terminal cover 7 Travel display screen
4 Waterproof plug 8 Deceleration cover
Performance Parameter
Model 05 10 16 25 50 100 200
Power Supply DC24V/AC110V/AC220V/AC380V
Output Torque 50Nm 100Nm 160Nm 250Nm 500Nm 1000Nm 2000Nm
Action Time 20S 30S 30S 30S 30S 50S 100S
Motor Power 10W 25W 30W 45W 90W 90W 110W
Protection  Motor overheat protector
Rotation Angle 0~100°adjustable
Working Temperature -10℃~60℃
Dielectric Strength Level DC24V/AC24V:500VAC 1 minute. AC110V/AC220V:1500VAC 1 minute. AC380V:1800VAC 1 minute
Rated Current 0.25A 0.52A 0.55A 0.80A 1.2A 1.4A 1.4A
Level of Protection IP67
Limit Switch Electric: travel limit switch. Manual: mechanical block
Weight (Kg) 2.8 4.2 4.5 7.2 7.5 12.5 12.5
