| Name | Design and manufacture | Face to face Length | Pressure Test |
| Reference Standard | GB/T12237 | GB/T12221 | GB/T13927 |

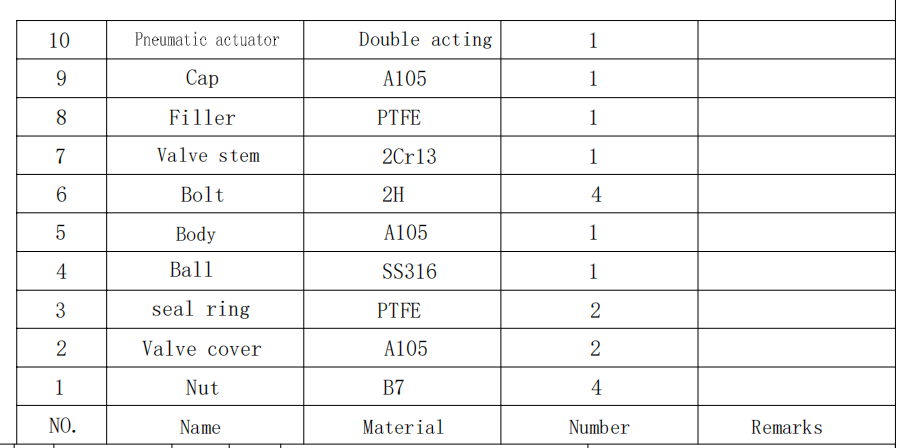

| Name | Body | Ball | Stem | Seal ring | Actuator |
| Material | A105 | SS316 | 2Cr13 | PTFE | Pneumatic actuator |
| Norminal pressure | Gas seal test(MPa) | Water seal test (MPa) | Shell seal test(MPa) | Working tempreature | Applicable media |
| PN16 | 0.6 | 1.76 | 2.4 | -20...+260℃ | Gas, steam, Water, etc |

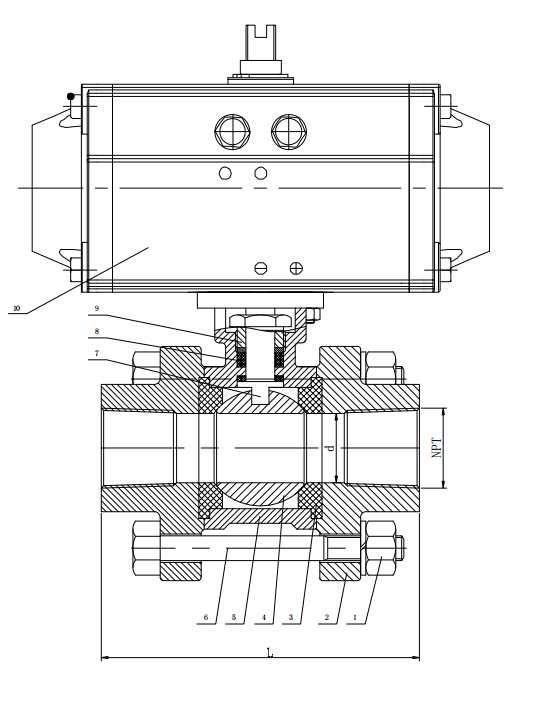

| DN | L | d | NPT |
| 25 | 126 | 25 | 1" |
