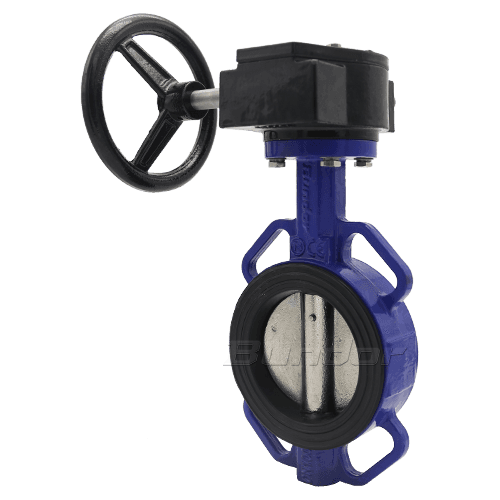

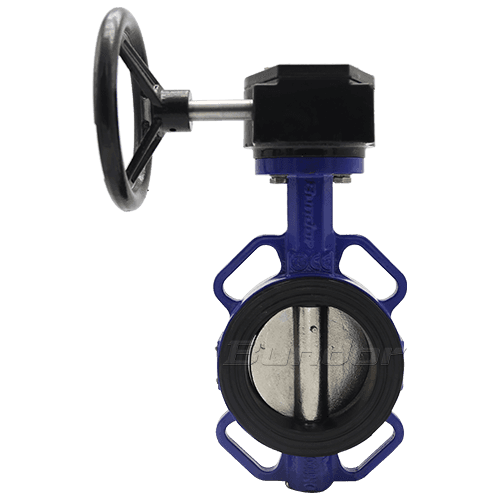

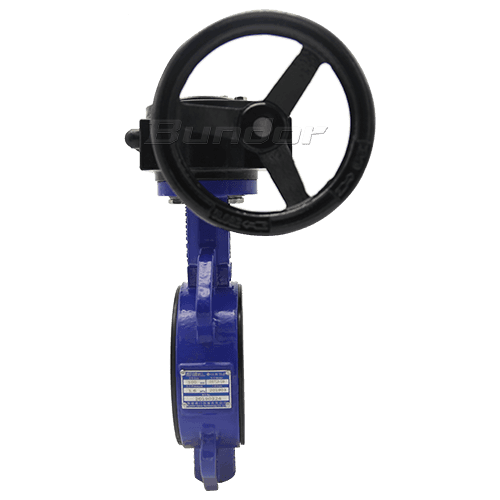

Worm gear operated wafer butterfly valve

Size Range: DN40-DN1200

Pressure: PN6/10/16

Body Materials: CI/DI/WCB/CF3/ CF3M/CF8/ CF8M

Seat Materials: NBR/EPDM/PTFE/SI

Disc Materials: DI/WCB/CF3/ CF3M/CF8/CF8M/ C954

Stem Materials: 45#/410/ 2Cr13/Cr13/304/316

Introduction

Adoptive Standards:

Valve Design: API 609, MSS SP-67

Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

Pressure Test: API 598

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

Top Flange: ISO5211

Features:

Single Eccentric Disc-Shaft

Anti-Blow Out Stem

Bi-Directional

Fire safe Design

Low Friction Body Seat

Zero Leakage

Standard Test :

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Product Advantages:


1、Bundor Valve patented product, patent number: 201510315321.5; 201520267217.9, the product side flange meets ISO, DIN, GOST, ANSI,BS, JIS and other  standards, convenient connection;

2、The valve body and disc are all adopted QT450-10 material, the ball rate is above grade 3, the mechanical performance is fully up to standard, the tensile strength is 450Mpa, and the elongation rate is more than 10%. It is not easy to crack or freeze;

3、The valve body is solid body, the same caliber weight is heavier than other manufacturers;

4、Seat uses standard EPDM rubber, making the butterfly valve's resilience and tension super stable and reliable, opening and closing more than 10,000 times without leakage;

5、The valve body uses an electrostatic powder thermal spraying process with a spray thickness of 250μm. The valve body is heated at 200°C for 3 hours, and the powder is cured at 180°C for 2 hours. After natural cooling, the surface adhesion is increased by 2 times than that of the ordinary powder, making it more environmentally friendly and weatherproof. Higher, to ensure that the valve body is not discolored for 36 months;

6、Introducing the PE heat-shrinking plastic packaging technology of electronic products. Each of the products of Bundor is individually wrapped with a heat-shrinkable film and has a built-in desiccant. The air dust is isolated to facilitate storage and avoid corrosion caused by moisture;

7、Every Bundor product has its own two-dimensional code identification from the accessories to the finished product, the unique ID number, to ensure that the product can be traced;

8、The Bundor intelligent detection equipment integrates standard data measurement and pressure detection. Each inspection report is automatically generated. Each data and report is saved for 5 years, ensuring that the factory qualification rate reaches 100%;

9、Bundor brand products are underwritten by Pacific Insurance Company with 10 million quality. The warranty is 2 years. Pay two back if one bad within two years. The quality of the product is unconditiona

Parameters



DN NPS H1 H2 H3 ∅A ∅B L
DN40 1.5" 65 128 32 110 95 33
DN50 2" 75 129 32 125 105 43
DN65 2.5" 82 136 32 145 127 46
DN80 3" 99 153 32 160 145 46
DN100 4"


110 167 32 190.5 165 52
DN125 5" 125 193 32 216 200 56
DN150 6" 145 209 32 241.3 225 56
DN200 8" 170 251 40 298.4 280 60
DN250 10" 210 280 45 361.9 350 68
DN300 12" 240 315 45 431.8 400 78
DN350 14" 260 348 45 476.2 445 78
DN400 16" 295.5 392.5 52 540 510 102
DN450 18" 401.5 322.5 52 585 565 114
DN500 20" 451.5 362.5 64 650 620 127
DN600 24" 541.5 428.5 70 770 725 154
DN700 28"
DN800 32"
DN900 36"
DN1000 40"
DN1200 44"
Application
Related Product
