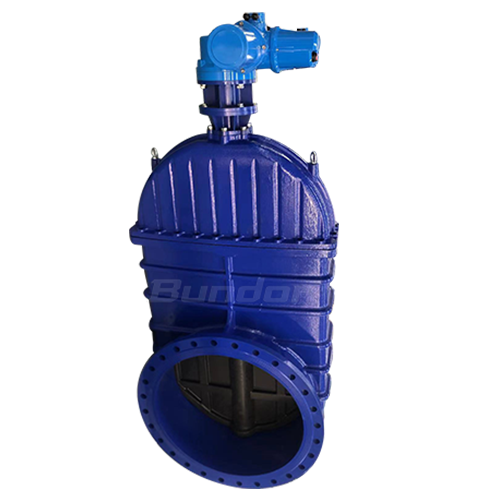

DIN 3352 F5 resilient seated flanged gate valves

Size Range: DN50-DN1200

Pressure: PN16

Body Materials: DI

Seat Materials: NBR/EPDM/PTFE

Disc Materials: DI+NBR/EPDM/PTFE

Stem Materials: 45#/2Cr13/ 304/316

Introduction

Product introduction
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.
Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc.
and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction,
petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.


Specifications
1.gate valve design DIN 3352 F5
2.Rising/Non-rising stem
3.Rubber encapsulated wedge
4.Clockwise closing direction

Product Features
Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside



Product Advantage

1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.

2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in  sewage system.

3 The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient;

4、 3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water

5、The stem use brass, operate easily,prevent block

6、Every link, from workblank to the finished product packaging will be inspected strickly.

7、BUNDOR Product quality is covered by China Pacific Insurance with two million dollors. Bundor Valve, Two Years Warranty, Pay Two Back If One Bad. Any quality problems of the product itself, we will pay without conditions.



Standard Test

Shell test

The cold test of the valve body, which is connected with the valve body and the valve cover,

is carried out to test the structural strength, pressure resistance and compactness of the

valve housing, including the whole housing in the fixed connection

Closure test

Test of sealing performance between valve opening and closing parts and seat seal, between

valve body and valve seat

Test pressure

The display pressure of the valve lumen during the experiment

Test fluid

Liquid or gas for pressure test of valves

Test fluid temperature

The temperature of the liquid or gas used for the pressure test of the valve shall be in the

range of 5-40 unless otherwise specified

Resilient seats

Seals made of non-metallic elastic materials, solid and semisolid lubricants, etc.



Adoptive Standards

Technical Data

DN50-DN300

PN1.0-1.6MPa

Flange Connection:PN10/16

Face to Face dimension:DIN 3202 F5

1.body: ductile iron

2.bonnet:ductile iron

3.gland:ductile iron

4.wedge:ductile iron+EPDM

5.lifting nut:brass

6.adjustable stem:SS420

7.clamp ring:brass

8.O ring:silicone

9.handwheel:ductile iron

10.bolt:carbon steel

11.ring:EPDM

12.bolt:SS304









Parameters





DN NPS(英寸) L ΦA ΦB ΦC
50  2'' 150 165 125 102
65  2  1/2'' 170 185 145 122
80  3'' 180 200 160 138
100  4'' 190 220 180 158
125  5'' 200 250 210 188
150  6'' 210 285 240 212
200  8'' 230 340 295 268
250  10'' 250 405 355 320
300  12'' 270 460 410 378
350  14'' 290 520 470 438
400  16'' 310 580 525 490
450  18'' 330 640 585 550
500  20'' 350 715 650 610
600  24'' 390 840 770 725
700  28'' 430 910 840 795
800  32'' 470 1025 950 900
900  36'' 510 1125 1050 1000
1000  40'' 550 1255 1170 1115
1200  48'' 630 1485 1390 1330
