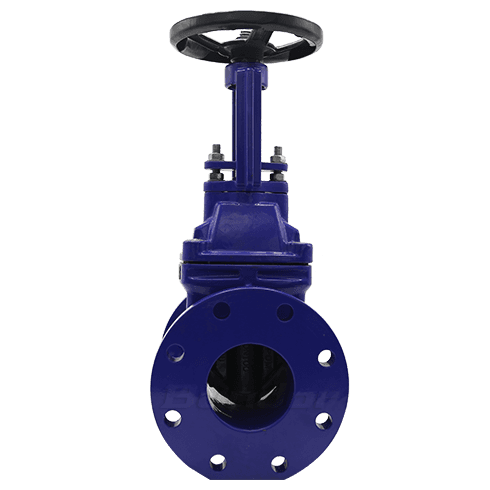

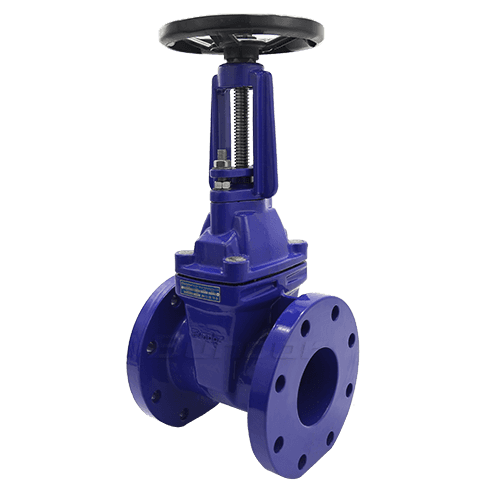

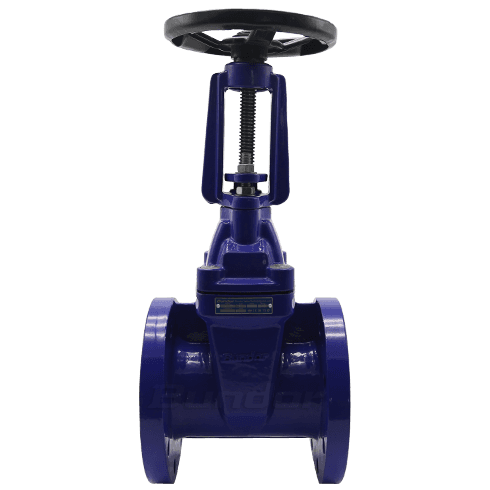

BS5163/GB Ring stem Gate Valve

Size Range: DN50-DN800

Pressure: PN1.0-1.6MPa

Body Materials:

Seat Materials:

Disc Materials:

Stem Materials:

Introduction

BS5163/GB Ring stem Gate Valve

Design standard: BS5163

Flange: BS4504 PN10.PN16/EN 1092

Face to face dimensions: BS5163

Test standard: BS5163

Work temperature: NBR≤80°,EPDM≤120°

Adoptive Standards

Technical Data

DN50-DN800

PN1.0-1.6MPa

Flange Connection:BS4504 PN10/16, EN1092

Face to Face dimension:BS5163

Product Features

Low torque operation

Rubber encapsulated wedge

Clockwise closing direction

Fusion bonded epoxy coated inside and outside

Product Advantage

1,The valve body is made of precision casting, the precise geometry makes the north of the valve body not need any finishing, so as to ensure the tightness of the valve.

2,The body is made of ductile iron QT450-10, shall not be broken by transportation, collision or installation.

3,The valve body adopts streamlined design, so that the medium moves straight in the valve cavity, the flow resistance is smaller and the flow area is larger.

4,The valve adopts bidirectional sealing design, and the installation direction and medium flow direction are not limited.

5,The inside and outside of the valve bodyadopt powder epoxy resin electrostatic coating, which can effectively prevent corrosion and rust caused by contact between valve body and medium, and can be used in sewage system.

6,The valve plate adopts high-quality overall rubber coating, the use of advanced technology makes the vulcanized rubber vulcanization after the valve plate to ensure accurate geometry, and the rubber and ductile iron gate connection is firm and not easy to fall off with good elastic memory, so as to ensure the stable performance of the valve sealing.

7,The bottom of the valve body adopts no groove design, and does not cause accumulation of impurities or dirt, thereby effectively avoiding the leakage caused by impurities scratching of the valve seat.

8,The valve stem is designed with three "O" ring seal. The friction resistance of the switch can be reduced, water leakage is greatly reduced, and the sealing ring can be replaced without cutting off water.

9,The screw made of aluminum bronze material, so the switch is more smooth, not easy to rust, difficult blockage.

10,The overall of valve adopt non rising stem design, reducing the valve, especially large diameter valve installation space.

11,For the installation of valves using in deep well and underground pipe, deep well connecting cap or lengthening rod mechanism can be provided according to customer requirements.

12,Bundor company specialized intentions since 1994, has a professional production, sales, research, after-sales team, is your strong backing of sales and use.

Standard Test
Shell test

The cold test of the valve body, which is connected with the valve body and the valve cover,

is carried out to test the structural strength, pressure resistance and compactness of the

valve housing, including the whole housing in the fixed connection

Closure test

Test of sealing performance between valve opening and closing parts and seat seal, between

valve body and valve seat

Test pressure

The display pressure of the valve lumen during the experiment

Test fluid

Liquid or gas for pressure test of valves

Test fluid temperature

The temperature of the liquid or gas used for the pressure test of the valve shall be in the

range of 5-40 unless otherwise specified

Resilient seats

Seals made of non-metallic elastic materials, solid and semisolid lubricants, etc.

Parameters

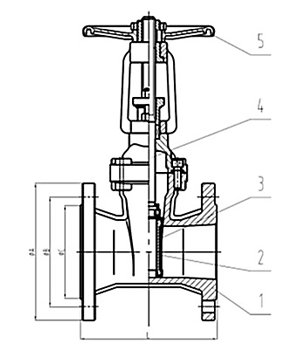

Main components and their materials:

NUM Name Material
1 Stem 2Cr13
2 Gland Ductile Iron
3 "O" Ring NBR
4 "O" Ring NBR
5 Splint Collar Iron+ Electroplate
6 Gland Nuts Steel 8.8+Wax
7 Stem Nut Brass
8 Wedge Ductile Iron+ EPDM
9 Bonnet Ductile Iron
10 Nuts Steel 8.8+Wax
11 Middle Gasket NBR
12 Body Ductile Iron
13 Hand wheel Ductile Iron


Dimensions & Weight & Price:


  L Flange dimensions to BS4504(mm) WEIGHT (KG/PCS)
DN   D D1 D2     n-d
  (mm) 1 1.6 1 1.6 1 1.6 f t 1 1.6 NRS RS
    MPa MPa MPa MPa MPa MPa     MPa MPa
50 178 160 125 99 3 17 4-18 10 11.5
65 190 180 145 118 3 17 4-18 12.5 14
80 203 195 160 132 3 18 4-18 16.5 18.5
100 229 215 180 156 3 19 4-18 20.5 23
125 254 245 210 184 3 20 4-18 27 31
150 267 280 240 211 3 21 4-18 40 44
200 292 335 295 266 3 20 8-12 12-12 60 65
250 330 390 400 350 355 319 3 22 12-12 12-26 95 101
300 356 440 455 400 410 370 4 24.5 12-12 12-26 128 136
350 381 500 510 460 470 429 4 26.5 16-22 16-26 175 185
400 406 560 575 515 525 480 4 28 16-26 16-30 230 245
450 432 615 640 565 585 530 548 4 30 20-26 20-30 330 350
500 457 670 715 620 650 582 609 4 31.5 20-26 20-33 390 425
600 508 780 840 725 770 682 720 5 36 20-30 20-36 580 610
Application
