Introduction
Body：Brass
Disc：Brass/ stainless steel
Name：Brass Globe Valve
Size： DN15-DN50
Pressure： PN16/ PN25;
Design standard: GB/T 8464;
Pressure test: GB/T 13927;
Working Temperature： -40℃～200℃
Suitable Medium： Water, Steam, Oil, Nitric Acid, Acetic Acid, etc
Body： Brass
Application： Municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, petroleum
1. Material meet the requirements of the national standards. Mill test report can be provided.
2. High sealing precision, no need to use sealing oil, valve cavity is clean and hygienic.
3. High-quality lead brass material and hot forging process can effectively prevent defects such as pores, shrinkage holes, pinholes, etc.
4. Each valve must be tested in accordance with national standards. Unqualified products will never be shipped.
5. Two years warranty, pay two back if one. Any quality problem of the product itself, we will pay without conditions.

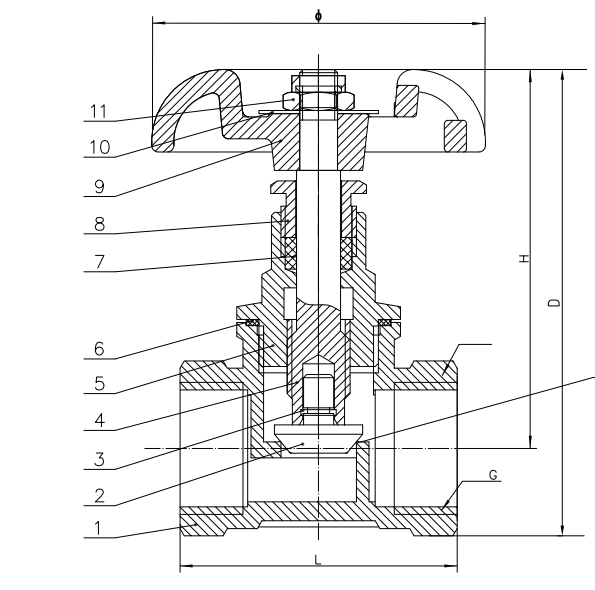

Parameters
| Name | 1-Body | 2-Disc | 3-Jump Ring | 4-Shaft | 5-Bonnet | 6-Gasket |
| Material | Brass | Brass/ Stainless Steel | Brass | Brass | PTFE | |
| DN | L | G | D | H | φ | |
| 15 | 55 | 1/2" | 27.8 | 63 | 52 | |
| 25 | 65 | 3/4" | 33.5 | 63 | 59.5 | |
| 25 | 80 | 1" | 42.5 | 80 | 65 | |
| 32 | 95 | 1 1/4" | 110 | 84 | 72 | |
| 50 | 132 | 2" | 150 | 115 | 107 |
