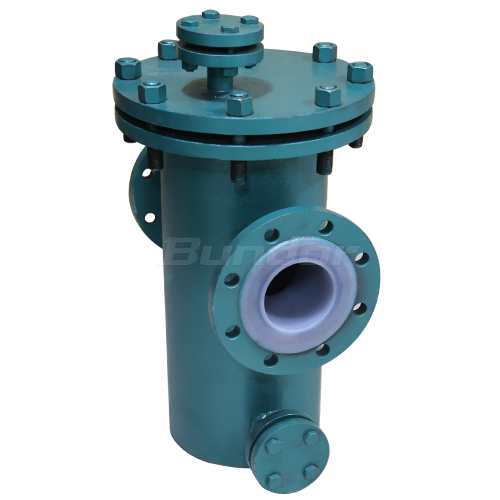

PTFE seat Basket type strainer

Size Range: DN25-DN250

Pressure: PN16

Body Materials: WCB/stainless steel

Chat online Mail us

Introduction

Features:

Name: PTFE seat Basket type strainer
Size: DN25-DN250
Pressure: PN16
Working temperature: -20℃～150℃
Suitable medium: Water, steam, oil, etc
Body: carbon steel/ stainless steel
Application:Petrochemical, chemical, pesticide, acid production, environmental protecting and medical industry etc

Advantages:

1. Excell WCB body , standard performance and compisiton materials;
2. Durable PFFE(F46) seat,high chemical stability;
3. High performance PTFE(F46) screen, anti-corrosion and durable ;
4. Customized creen mesh;.
5. The welding adopts robot automatic welding to form at one time, and the welding seam is flat and firm.
6.  Each valve will be made pressure test for seal and shell before leaving factory.

Parameters

PTFE seat Basket type strainer


Parameter Information：
1. Executive standard：
Name Design and manufacture   Pressure standard Flange standard
Stanadard SH/T 3411-2017   GB/T 13927-2008 HG/T 20592-2009
2. Material of Main Parts:
Name Body Scrren Gssket
Materials Q235+F46 F46 PTFE
3. Dimensions：
SIZE
DN NPS L ΦD H H1
25 1'' 260 108 330 200
32 1  1/4'' 260 108 330 200
40 1  1/2'' 260 108 330 200
50 2'' 260 108 330 200
65 2  1/2'' 340 159 430 280
80 3'' 340 159 430 280
100 4'' 400 219 490 305
125 5'' 500 273 635 420
150 6'' 500 273 635 420
200 8'' 560 325 785 525
250 10'' 660 426 895 640
