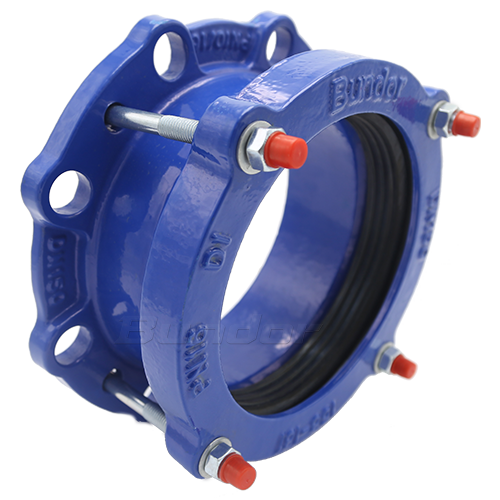

Features:
Diameter range：DN50-DN600
Applicable pressure：PN16，250PSI
Applicable temperature:0℃～50℃
Suitable medium ：Water and neutral liquid
Body material：QT450-10
Application fields: Water supply and drainage, water treatment, water conservancy projects, etc.
Product advantages:
1. Each product has a standard abrasive tool. The grinding tool is CNC machined for high precision.
2. The spheroidization rate of each product can reach level 2 or above.
3. The spray material is sprayed with imported powder paint.
4. Each pipe fitting is tested on site.
Introduction
Parameters
| Name | 1-Body | 2-Rubber gasket | 3-Gland | 4-Nut | 5-Bolt | |
| Materials | QT450-10 | EPDM | QT450-10 | 45# | 45# | |
| Size | Range | DN | NPS | D | H | L |
| DN50 59-73 | 59-73 | 50 | 2 | 165 | 76 | 130 |
| DN65 72-85 | 72-85 | 65 | 2.5 | 185 | 76 | 130 |
| DN80 88-103 | 88-103 | 80 | 3 | 220 | 76 | 130 |
| DN100 108-128 | 108-128 | 100 | 4 | 225 | 76 | 130 |
| DN125 132-154 | 132-154 | 125 | 5 | 280 | 76 | 130 |
| DN150 159-182 | 159-182 | 150 | 6 | 295 | 76 | 130 |
| DN175 192-209 | 192-209 | 175 | 7 | 340 | 76 | 130 |
| DN200 218-235 | 218-235 | 200 | 8 | 340 | 76 | 130 |
| DN250 246-270 | 246-270 | 250 | 10 | 410 | 85 | 130 |
| DN250 271-289 | 271-289 | 250 | 10 | 410 | 85 | 130 |
| DN300 315-332 | 315-332 | 300 | 12 | 485 | 90 | 130 |
| DN300 322-340 | 322-340 | 300 | 12 | 485 | 90 | 130 |
| DN350 374-391 | 374-391 | 350 | 14 | 520 | 90 | 160 |
| DN400 417-437 | 417-437 | 400 | 16 | 580 | 90 | 160 |
| DN450 470-485 | 470-485 | 450 | 18 | 640 | 90 | 160 |
| DN450 480-500 | 480-500 | 450 | 18 | 640 | 90 | 160 |
| DN500 526-546 | 526-546 | 500 | 20 | 715 | 90 | 160 |
| DN600 630-650 | 630-650 | 600 | 24 | 840 | 90 | 160 |
