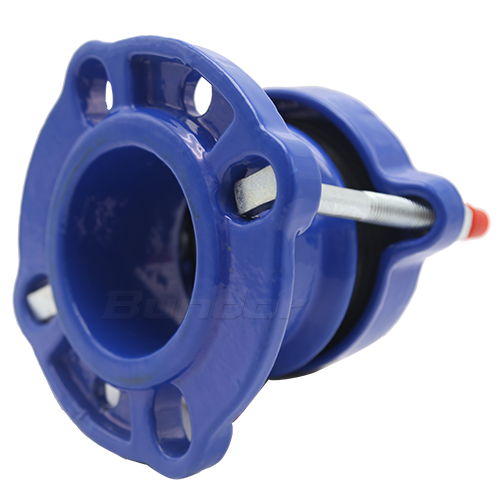

Flange Adapter

Size Range: DN50

Pressure: PN16,250PSI

Body Materials: QT450-10

Introduction

Features:
Diameter range:DN50-DN600
Applicable pressure:PN16,250PSI
Applicable temperature:0℃~50℃
Suitable medium :Water and neutral liquid
Body material:QT450-10
Application fields: Water supply and drainage, water treatment, water conservancy projects, etc.

Product advantages:
1. Each product has a standard abrasive tool. The grinding tool is CNC machined for high precision.
2. The spheroidization rate of each product can reach level 2 or above.
3. The spray material is sprayed with imported powder paint.
4. Each pipe fitting is tested on site.


Parameters

Name 1-Body 2-Rubber gasket 3-Gland 4-Nut 5-Bolt
Materials QT450-10 EPDM QT450-10 45# 45#
Size Range DN NPS D H L
DN50 59-73 59-73 50 2 165 76 130
DN65 72-85 72-85 65 2.5 185 76 130
DN80 88-103 88-103 80 3 220 76 130
DN100 108-128 108-128 100 4 225 76 130
DN125 132-154 132-154 125 5 280 76 130
DN150 159-182 159-182 150 6 295 76 130
DN175 192-209 192-209 175 7 340 76 130
DN200 218-235 218-235 200 8 340 76 130
DN250 246-270 246-270 250 10 410 85 130
DN250 271-289 271-289 250 10 410 85 130
DN300 315-332 315-332 300 12 485 90 130
DN300 322-340 322-340 300 12 485 90 130
DN350 374-391 374-391 350 14 520 90 160
DN400 417-437 417-437 400 16 580 90 160
DN450 470-485 470-485 450 18 640 90 160
DN450 480-500 480-500 450 18 640 90 160
DN500 526-546 526-546 500 20 715 90 160
DN600 630-650 630-650 600 24 840 90 160
